Truck Tippler Loading Unloading System
Truck Tippler Loading Unloading System

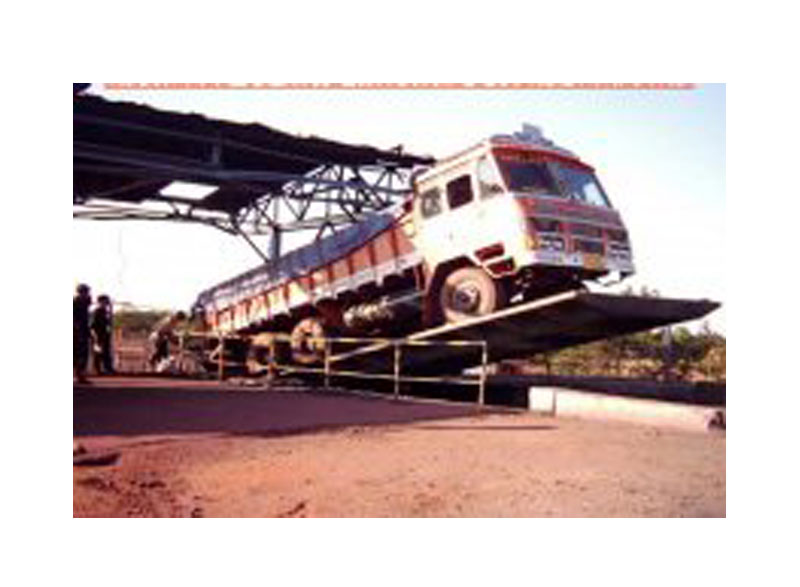

Truck Tippler Loading and Unloading system is a materials handling device used for projects needing, loading or unloading of Limestone, Coal, Silica, Sugarcane, etc. The Truck Tippler Loading and Unloading system is erected permanently along with the hopper or carrier. Loaded truck is brought on to Tippler platform first. Then, truck is hydraulically hooked to front wheels. Rear Stopper of the truck tippler supports truck’s rear wheels hydraulically. It is then tilted hydraulically to max angle of nearly 55 degree. The materials slide down to hopper or carrier. The complete cycle takes nearly 4-5 minutes.
Our Truck Tippler system is designed according to the specific requirement of our clients and is made using high quality raw materials offered at very reasonable prices. Single point loading and unloading of trucks, containers and trailers of capacities of 30 to 100 tons can be made possible with a tilting angle of nearly 55 degree. It can be also used as a Fast and Safe way to unload granular material from trucks to the ground hopper. We manufacture the Truck Tippler Loading and Unloading system as per the prescribed standardized norms and they are highly efficient, reliable, safe, and demanded across the world.
Salient features & Specifications:
- A perfect system for unloading dolomite, gypsum, coal, phosphate, iron, limestone, chemicals, salt, oil, ore, slag, etc.
- Turnaround time – generally 10-15 minutes or based on down line receiving equipments
- Dual hydraulic cylinders jack for smooth and fast operation
